Real-time Monitoring Borehole Inclinometer For Pressure 20Mpa And Ø40mm

Ask Lasest Price
Brand Name :	GOLD
Model Number :	GDP-3D
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1 set per 5 days
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

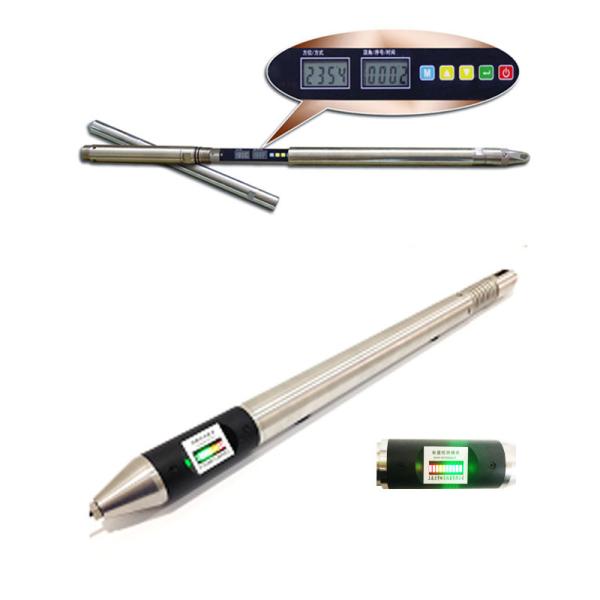

Real-time Monitoring Borehole Inclinometer For Pressure 20Mpa And Ø40mm

Product Description:

The GDP-3D Wireless Digital Inclinometer is an outstanding tool for measuring the angle and slope of any surface with high precision and accuracy. The device is designed to provide engineers, contractors, and researchers with reliable data that can be used to make informed decisions when constructing buildings, roads, and other infrastructure projects.

Features:

Product Name: GDP-3D Wireless Digital Inclinometer
Dimensions: Ø40mm×1200mm/6kg
Storage: 8GB ROM
Measuring Range: 0° - 80°
Pressure: 20Mpa
Depth: 2000m
Also known as: Borehole Tiltmeter, Borehole Inclination Sensor, Borehole Tiltmeter

Technical Parameters:

Product Name:	GDP-3D Wireless Digital Inclinometer
Borehole Tiltmeter:	Yes
Borehole Slope Indicator:	No
Borehole Inclination Sensor:	Yes
Operating Temperature:	-20°C ~+85°C
Dimensions:	Ø40mm×1230mm
Measuring Resolution:	0.01°
Pressure:	20Mpa
Depth:	2000m
Measuring Accuracy:	±0.1°
Measuring Range:	0° - 50°
Storage:	8GB ROM
Warranty:	1 Year

Applications:

Measurement of vertex and azimuth for various types of geological drilling with non-magnetic or weak magnetic.

In conclusion, GOLD's Borehole Inclinometer, model GDP-3D, is an excellent borehole tiltmeter that is suitable for a wide range of application occasions and scenarios. With its high level of accuracy, durability,

Contact us:

and versatility, this product is perfect for use in various fields such as geotechnical engineering, mining engineering, tunneling, and scientific research.
