Wireless Remote Control Geophysical Resistivity Tomography Equipment Resistivity Meter

The instrument is our newly developed product with years of research and production experience of advanced electrical tool, which includes many advanced elentronic technique such as all-chinese pocket PC, blue tooth, 24 bit A/D, and large power control. This tool has small size and light weight, and its main technique specifications and functions are more advanced than similar tools abroad and home can be applied in different complex regions. It has been applied widely in metal and non-metal mineral propecting, civil propecting, railway, bridge, etc. It can also be applied in underground water, water reservoir dam foundation, jetty hidden trouble, and geothermal exploration.

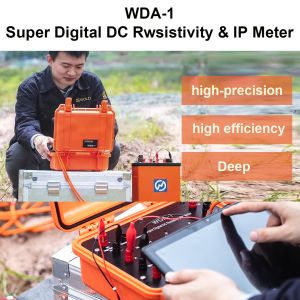

The working principle of WDA-1 Super Digital DC Electrical Instrument is based on DC electrical exploration technology, which uses artificial field methods to establish a stable electric field underground, and studies the distribution law of underground electric fields to understand geological structures and find mineral resources. The following is its detailed working principle:

Transmitter:

The transmitter part of the instrument is responsible for generating and outputting DC high-voltage power for use by electrodes. These power supplies can be built-in lithium batteries or other forms of DC high-voltage power supplies.
The transmitter part has overvoltage, overcurrent and AB open circuit protection capabilities to ensure stable operation in various complex environments.
Receiving part:

The receiving part is responsible for measuring the potential difference or current change caused by the electric field generated by the transmitting part in the underground medium. These measurement data are crucial for analyzing the resistivity distribution of underground media.
The receiving part has instantaneous overvoltage input protection capability to prevent damage to the instrument due to external voltage shocks.
Data acquisition and processing:

The instrument has a built-in advanced data acquisition system that can collect and process measurement data from the receiving part in real time. After digital processing, these data can be converted into multiple geophysical parameters such as apparent resistivity, natural potential, and apparent polarizability.
During data processing, the instrument automatically performs natural potential, drift and electrode polarization compensation to improve measurement accuracy.
Display and control:

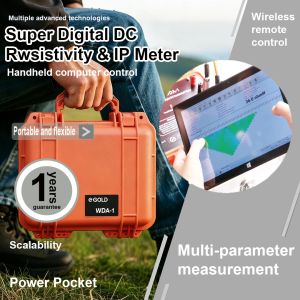

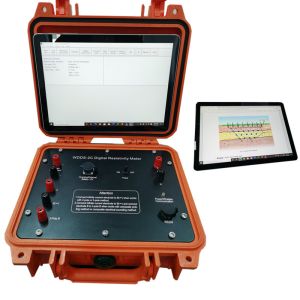

The WDA-1 Super Digital DC Electrical Apparatus is equipped with a full Chinese handheld computer and Bluetooth technology, which realizes intuitive operation of the human-machine interface and wireless remote control functions. Users can easily set parameters, start measurements, transmit and display measurement results, etc. through a tablet computer.
The instrument also has a diagnostic program that can quickly and accurately determine the location of the fault and the main damaged components, facilitating maintenance and repair.

1. High Accuracy: use the most advanced circuit design, single chip microcomputer control, automatic noise reduction,
digital filtering to highly improve survey accuracy and stability.
2. Easy to Operate: humanized man-machine interface, built-in all kinds of formulas to read VP, IP, RO, M, TH... parameters
3. More Parameters: could measure VP, IP, SP, RO, M, TH...
4. Complete Equipment: four poles to detect depth, intermediate gradient, combined profile, five poles, three poles etc....about 30 kinds
5. Safe and Stable: Protections with over voltage, over current, battery and battery display, data protection after interrupt of
electrical power
6. Artistic and Durable: use thin file switch panel, ABS shell.
