Hydrogeology Borehole Logging Equipment

Hydrogeology Borehole Logging Equipment has more than twenty types of measurement parameters, including electrical, magnetic, density, radioactivity, orientation, temperature, pressure, flow, speed, etc. Whether it is metal ore, coal field, oil field, radioactive ore or salt well, and hydrological holes. The parameters of commonly used are also consistent with international habits.

Main Specifications

The use of the environment:Power supply: 220V, 50 Hz；Using the environment temperature: -20℃ ~ 45℃;

2.The depth measurement system:Depth measurement range: 0 ~ 9999.99 m；Depth resolution: 0.28 mm；Speed measurement range: 0 ~ 9999m/h；Deep optical pulse signal: 3600 pulses per meter

3.Signal transmission system: Bottom hole output signal: bipolar coding；Communication with the computer: RS232 or USB；The underground signal detection level: plus or minus 0.5 V ~ plus or minus 12V

4. Figure out the depth of the graph; 1:10; 1:50. 1:100. 1:0; 1, 50, 0, etc.

5. The drawing accuracy:8 points per millimeter (curve)；64 pixels per square millimeter (image method)

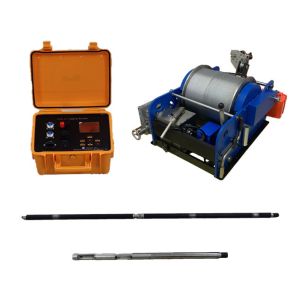

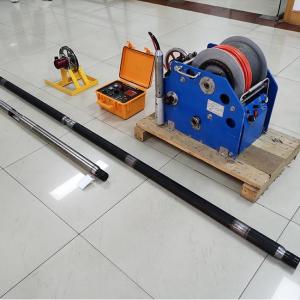

Product Image

Technical Specification

Chongqing Gold Mechanical Electrical Equipment Co. Ltd. has been actively involved in the design, development, and manufacturing of geophysical exploration equipment for over four decades. Our expertise encompasses various techniques used to capture images and map subsurface features and structures such as minerals, oil and gas reservoirs, groundwater, and geological formations.

At present, our company manufactures a diverse range of equipment that encompasses resistivity meters, seismic receivers, magnetic instruments, borehole loggers, and various other geophysical sensors. Additionally, we offer geotechnical instruments such as pile testers and drilling machines.

In collaboration with geologists, geophysicists, and other domain experts, we design and develop instruments that cater to the unique requirements of our clients. To maintain our leading edge in the market and keep up with technological progress and scientific advancements, we continuously invest in research and development to ensure that our equipment is accurate, reliable, and efficient.
