Deep Borehole Inclinometer with Digital Display

Application:

It is widely used in measurement of vertex and azimuth for various types of geological drilling.

Feature:

· Direct-reading of vertex and azimuth

· Digital display, point measurement or continuous measurement

· Simple, reliable operation,

System:

ground instrument, probe, cable and other components

Technical Specs:

· Vertex Coverage: 0~60°

· Vertex Accuracy: ≤ 0.1°

· Azimuth Coverage: 0~360°

· Azimuth Accuracy: ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)

· Working Temperature: 0~85 ℃

· Probe Outline Dimension: φ42×1000 mm

· Ground Instrument Dimension: 240×95×140mm

· Probe Weight: 2 Kg (weighing bar 5 Kg)

· Probe Downhole Length: ≤1000

Technical Specification:

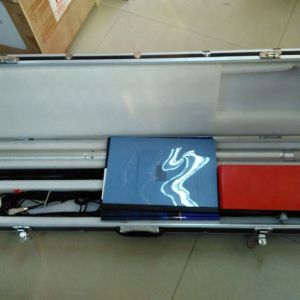

Product Image

Chongqing Gold Mechanical Electrical Equipment Co. Ltd. has been actively involved in the design, development, and manufacturing of geophysical exploration equipment for over four decades. Our expertise encompasses various techniques used to capture images and map subsurface features and structures such as minerals, oil and gas reservoirs, groundwater, and geological formations.

At present, our company manufactures a diverse range of equipment that encompasses resistivity meters, seismic receivers, magnetic instruments, borehole loggers, and various other geophysical sensors. Additionally, we offer geotechnical instruments such as pile testers and drilling machines.

In collaboration with geologists, geophysicists, and other domain experts, we design and develop instruments that cater to the unique requirements of our clients. To maintain our leading edge in the market and keep up with technological progress and scientific advancements, we continuously invest in research and development to ensure that our equipment is accurate, reliable, and efficient.
